1U 16-Port USB-C Charging & Syncing Hub, USB 3.1
- Wide product range
- 4,000+ satisfied customers
- Expert and personalized advice
- Post-payment available for businesses and institutions

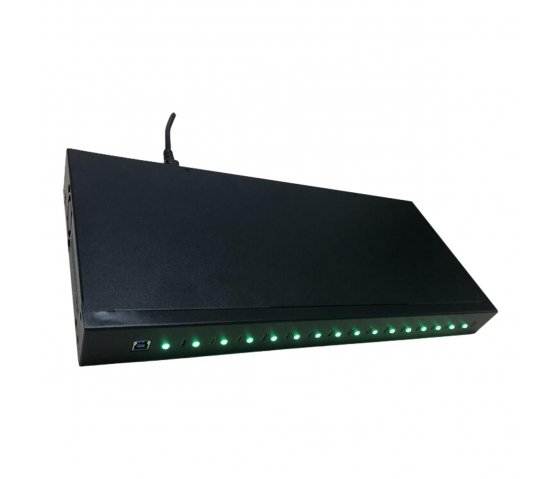

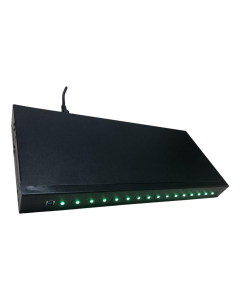

This USB-C charging hub is suitable for charging and syncing up to 16 USB-C devices, offering super-fast data transfer speeds and a charging capacity of 5V, 3A per port. Ideal for schools, offices and other environments with multiple USB-C devices.
- Can charge and synchronise up to 16 tablets, smartphones and other USB-C devices simultaneously
- Supports USB 3.1 Gen 2 speeds of up to 10 Gbps for super-fast data transfer
- Each of the 16 USB-C ports can deliver up to 12W of charging power
- LED indicator: red whilst charging, green when fully charged
Recommended for schools, offices, and other environments where multiple Type-C devices are used, this device delivers up to 5V, 3A of power to each port—more than enough to charge battery-intensive devices. An included USB cable can be connected to the device’s USB-B port and a computer’s USB-A port for synchronization purposes.
The durable steel housing can be mounted in a 1U space of an EIA-standard 19-inch rack or flight case using the included hardware.

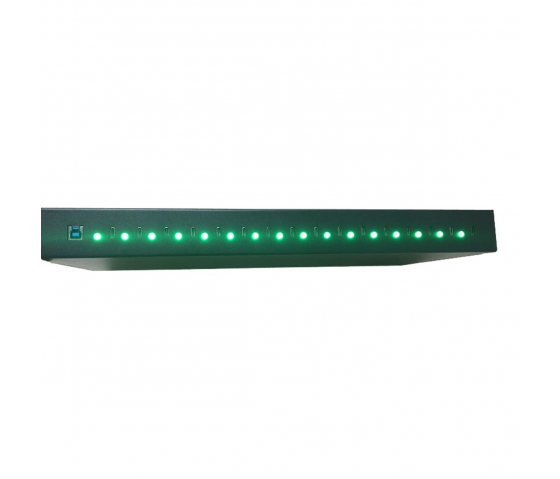

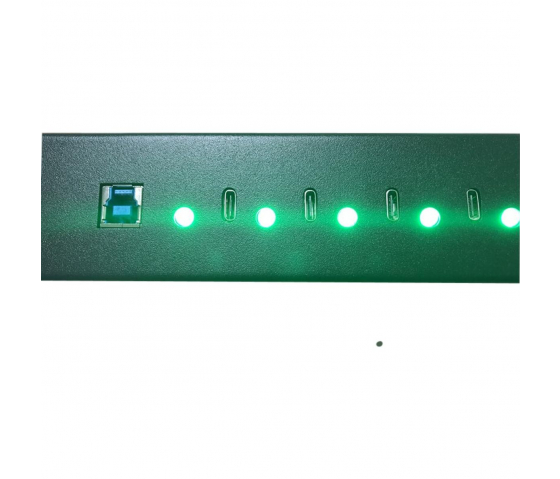

On the front of the charging hub, the indicator light will glow red while the device is charging; when it glows green, the device is fully charged.
Specifications
- Supports USB 3.1 Gen 2 speeds of up to 10 Gbps to ensure super-fast data transfer
- Charges up to 16 tablets, smartphones, and other Type-C devices
- When all ports are in use simultaneously, each port delivers up to 0.9 amps of current
- Charging status is easy to read thanks to the LED indicator: red while charging, green when fully charged.
- Compatible devices include iPad, iPod, iPhone, and Android tablets and smartphones
- Delivers up to 5V, 2.4A (12W) of charging power to each port
- Also syncs devices via a connected computer
- Syncs USB devices via compatible software, such as iTunes or Apple Configurator
- The included USB cable connects the USB-B port to the USB-A port on a computer
- The Type-C charger is equipped with an internal cooling system to dissipate heat and is powered by an AC input.
- Because the ports are BC 1.2-compatible, they can deliver up to 2.4 amps of charging power to mobile devices (when connected to a power source).
You need to consider two factors: connections and power.
Check the connections
First, you need to determine what type of ports your devices require. Most charging hubs offer a combination of USB-A and USB-C ports. Ensure that the hub has the right ports for your devices, such as smartphones, tablets, laptops, or Chromebooks.
Power and compatibility
Check the hub's maximum output power. For fast charging or for devices with high power consumption, such as laptops, you need a hub with sufficient wattage. USB-C Power Delivery (PD) ports can deliver higher power and are ideal for laptops and larger devices.
This information is listed in the product specifications.
See the following table which we use as a rule of thumb:
| 8.5 W | 10 W | 12 W | 20W | 45W | 65W | |
| Smartphones | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ |
| Tablets | ❌ | ✅ | ✅ | ✅ | ✅ | ✅ |
| Chromebooks | ❌ | ❌ | ❌ | ❌ | ✅ | ✅ |
| Laptops | ❌ | ❌ | ❌ | ❌ | ✅ | ✅ |
Note: this rule of thumb is purely indicative. Carefully check your device's specifications to confirm compatibility.
