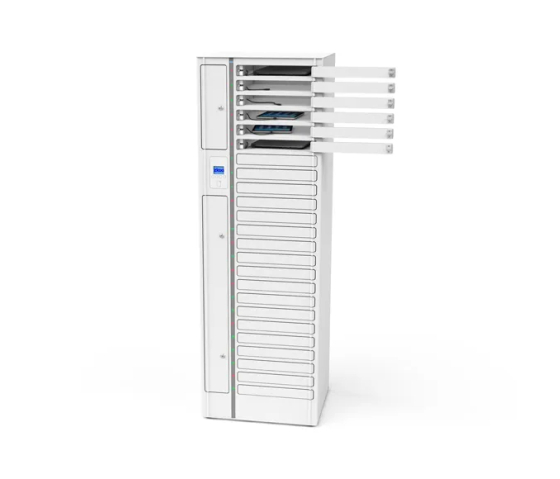

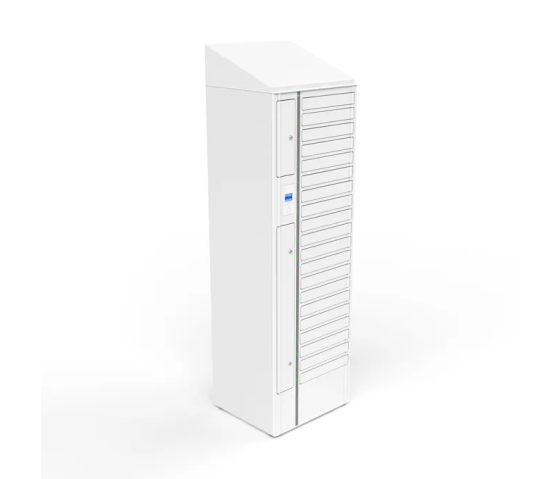

Laptop charging locker VLS1-16S-M-O-G for 16 laptops up to 17 inches - power plugs - RFID lock + Web control

The Zioxi Volt 1:1 charging locker is a smart and secure locker solution for storing and charging up to 16 laptops, Chromebooks, and tablets up to 17 inches. Each device is stored in its own lockable compartment, while the power plugs, and power adapters are safely housed in a separate electrical compartment.

The opening of each locker compartment measures 460 × 310 × 83 mm (D × W × H). The locker is suitable for most laptops up to 17 inches. For larger devices or protective cases, we recommend checking the dimensions—including the connected power plug—in advance.

1:1 charging with power adapters in a separate compartment

In this 1:1 configuration, the power plugs s and power adapters are located in the separate electrical compartment at the front of the locker. From this compartment, only a short charging cable is routed to each locker.

This keeps each compartment neat and organized, and the user does not have to carry the power adapter with them every time. The Zioxi OneClick cable management system keeps the charging cable in place.

Power adapters and charging cables are not included.

RFID Access with Zioxi onView

The VLS1-16S-M-O-G is equipped with MiFare RFID access control and Zioxi onView. Users can access an assigned or available locker using compatible RFID cards or tags.

Through the onView web portal and mobile app, administrators can centrally manage users and lockers, set access rights, remotely open lockers, and configure various usage modes, including personal, shared, and loan lockers.

onView also provides audit logs, notifications, locker management rules, and reports on usage, energy consumption, temperature, and events, among other metrics. Where available, Green Charge can be used to schedule charging times to coincide with periods of lower CO₂ emissions from the power grid.

Robust freestanding locker tower

The locker features double-walled aluminum fronts and doors and a white MFMDF enclosure. The doors can be opened up to 180°.

Measuring 58 × 51 × 177 cm, the locker tower offers 16 separate compartments in a compact footprint. Multiple lockers can be placed side by side to form a larger locker bank.

Technical specifications

• Capacity: 16 laptops, Chromebooks, or tablets up to 17 inches
• Power configuration: connectors in a separate compartment, charging cable inside the locker
• Power supply: power plugs and power adapters in a separate electrical compartment
• Power adapters and cables: not included
• Access control: MiFare RFID with Zioxi onView
• Locker opening: 460 × 310 × 83 mm (D × W × H)
• Locker dimensions: 58 × 51 × 177 cm (W × D × H)
• Cable management: Zioxi OneClick
• Electrical compartment: separate and accessible from the front
• Construction: double-walled aluminum fronts and doors, white MFMDF enclosure
• Door opening: up to 180°
• Setup: freestanding, individually or combined as a locker bench
• License: Annual onView license required; first year included
• Warranty: 5 years, including 2 years on the electronics
